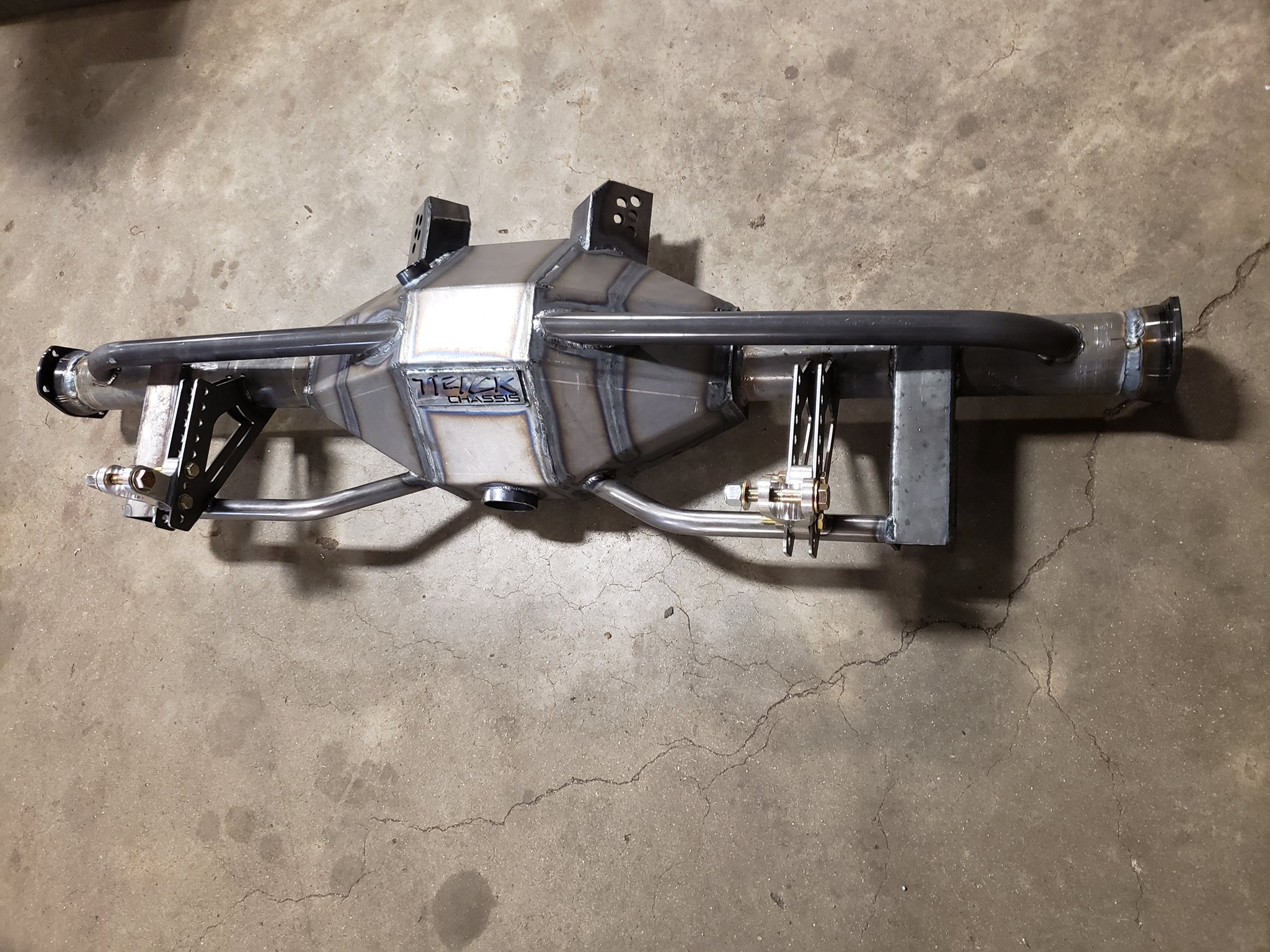

Outlaw Fab 9″ Rear End Housing With Axles

$1,400.00

SKU: TC462 Category:

Description

Trick Chassis Outlaw Fab 9″ Rear axle for 1978 to 1988 G Body cars. We have many super custom options that may not be listed in this post. Check out Facebook page for more pictures of custom options we have done.

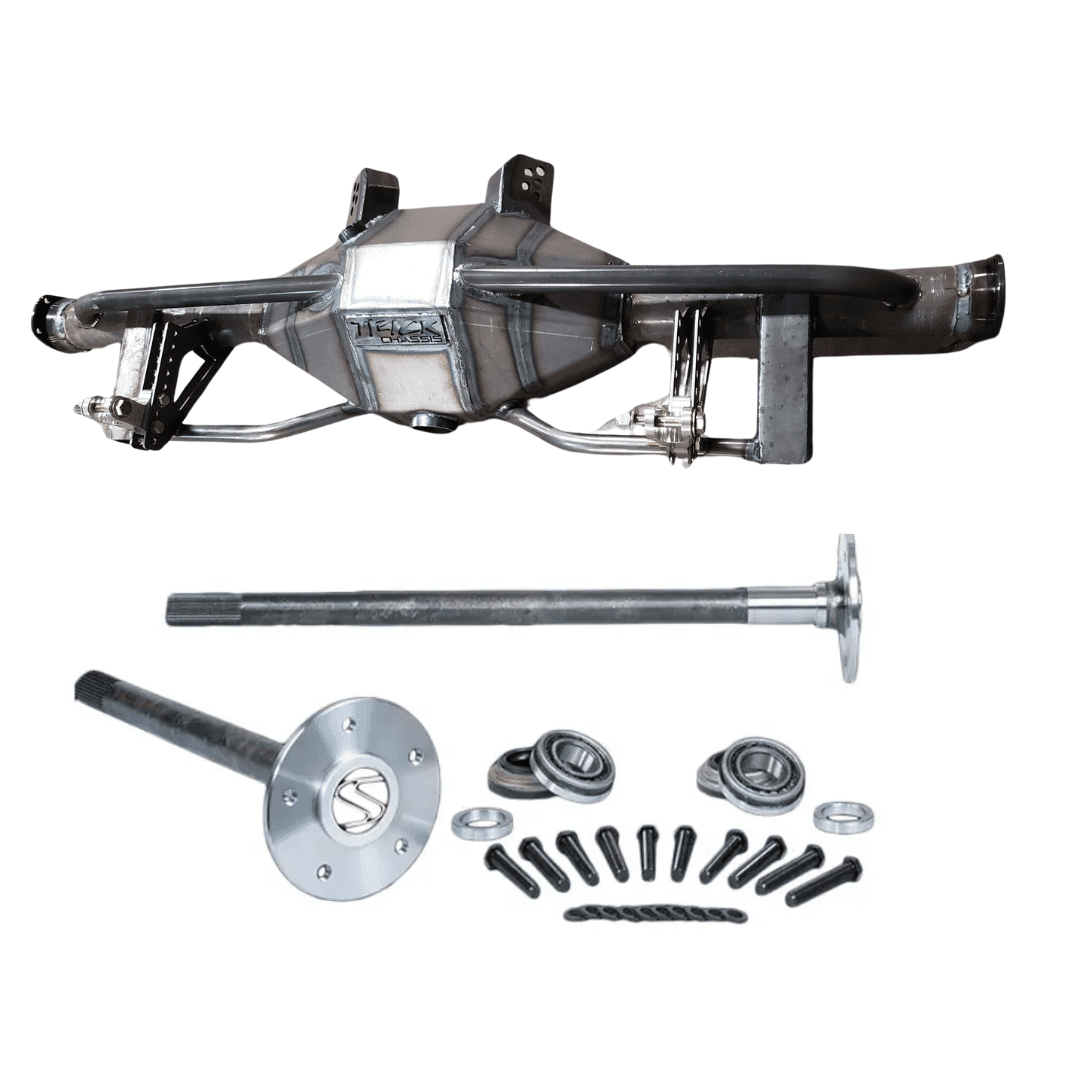

Below is what comes with it for $1400:

Sheet metal  fabricated  housing can

Internal axle tube gussets (STANDARD)

3″ .250 wall DOM axle tubes (STANDARD)

11 lower control arm mounting holes (STANDARD)

Lower tubular gussets (STANDARD)

28, 31, 35 spline axle options (YOUR CHOICE)

Drive studs included 12mm, 1/2-2″,1/2-3″  (YOUR CHOICE)

Housing vent included

wheel bearings included

Shipped bare steel

We can narrow for free (see options)



Options for additional charge:

T bolt brake hardware kit (easy install of your stock F body backing plates)

40 spline upgraded axles (gun drilled)

5/8 wheel studs

11 Hole narrowed lower brackets

Powder coat

Tow Loops

Fill and drain caps

Coil over brackets

Coil over brackets with no spring perches added

Please call or email us for pricing and estimated time:

We offer full bolt in assemblies

Extreme custom applications (we have done many of these)

Crate and freight available

International shipping* Our website will not calculate dutys/taxes/shipping/broker setups.

Important information:

If your driving on the street and selected the 40 spline option get the moser axles. Strange Engineering does NOT recommend their 40 splines to be put on the street.

When selection “differential options”  This is telling us what center section that you already have, or are planning on using. The axle lengths will be cut accordingly. If you purchase this for a spool then later down the road want a clutch lock or S-trac or True Track ect ect. One axle may not fit and will need to be trimmed down. Or if you bought this for anything but a spool, and then use a spool center section, the axle could end up being too short on one side. You will not have enough spline engagement.

Axles are shipped with no bearings on them. Some brake backing plates need to go on first then the bearings get pressed on behind them.

Axles are dropped shipped and may show up at an earlier or later time than the housing.





Additional information

Weight 110 lbs
Dimensions 60 × 19 × 14 in
Powder Coat

Gloss Black, Gloss Red, Semi Gloss Black

Model Year

1993 – 1997, 1998 – 2002

Axle Splines

28 Moser Axles, 28 Strange Engineering Axles, 31 Spline Moser Axles, 31 Strange Engineering Axles, 35 Spline Moser Axles, 35 Spline Strange Engineering Axles, 40 Spline Strange Engineering

ABS

4 channel ABS ring, None

Back Brace

None, Yes

Wheel Studs (Screw In)

1/2" Wide – 2" Long, 1/2" Wide – 3" Long, 12MM (Stock), 5/8" Wide – 3" Long

Fill & Drain Plug

Both Fill & Drain, Drain, Large Billet Fill, None

Housing Ends

Billet Big Bearing New Style, Billet Big Bearing Old Style, Billet Symmetrical Ends, Flush Mount GM (Can Use Stock F-Body Brakes)

Sway Bar Brackets

None, Yes

Rear End Length

1" Shorter (Each Side), 1/2" Shorter (Each Side), 2" Shorter (Each Side), 3" Shorter (Each Side), Stock Width
