9″ Rear End Housing With Axles AND Center Section G Body

$1,990.00

-

SKU: TC460 Category:

Description

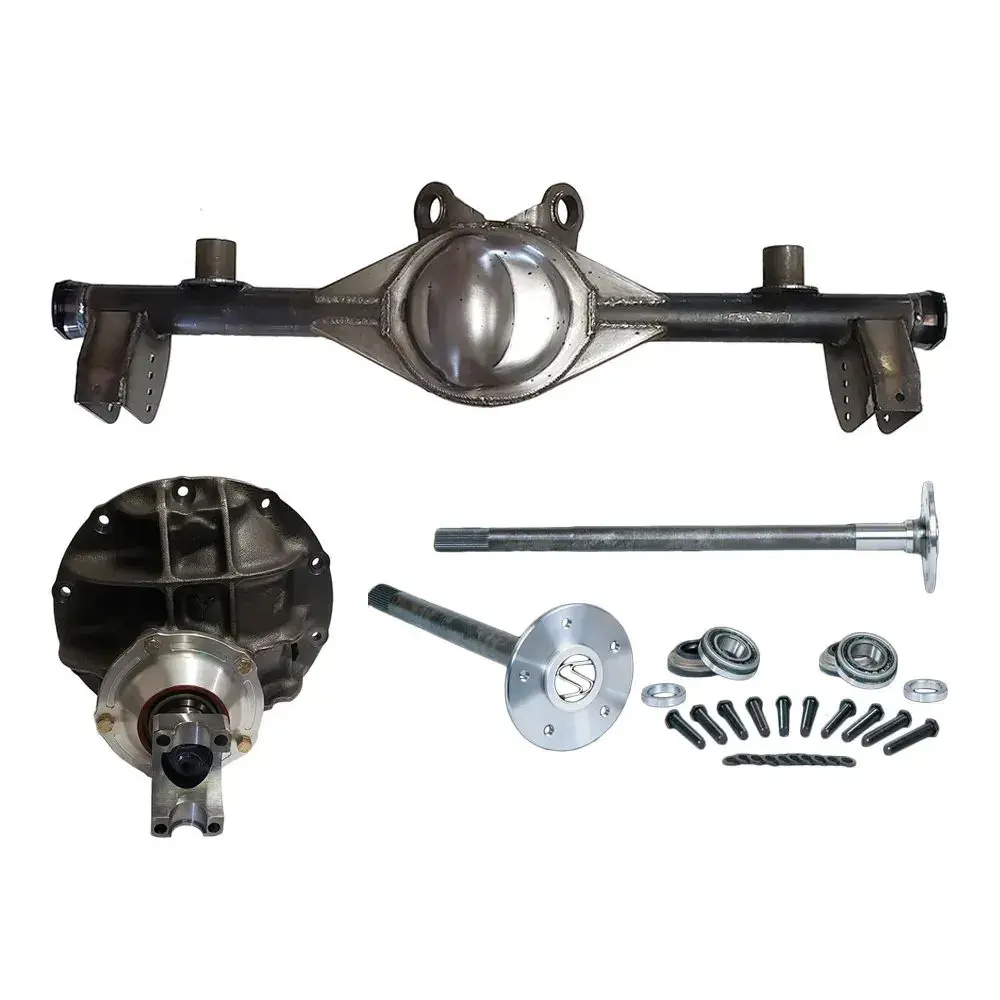

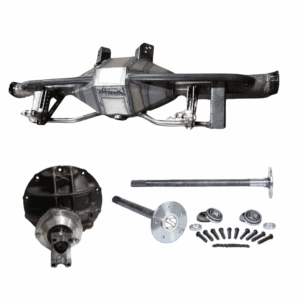

Trick Chassis 9″ Rear axle for 1978 to 1988 G Body cars.

Below is what comes with it for $1970:

  • Brand new center fabricated housing can (STANDARD) Others charge $100 more.
  • Internal axle tube gussets (STANDARD) Others charge $75 more.
  • 3″ .250 wall DOM axle tubes (STANDARD) Others charge $30 more.
  • 4 lower control arm mounting holes (STANDARD).
  • 28, 31, 35 spline axle options (YOUR CHOICE).
  • Drive studs included 12mm, 1/2-2″,1/2-3″ (YOUR CHOICE).
  • Housing vent included.

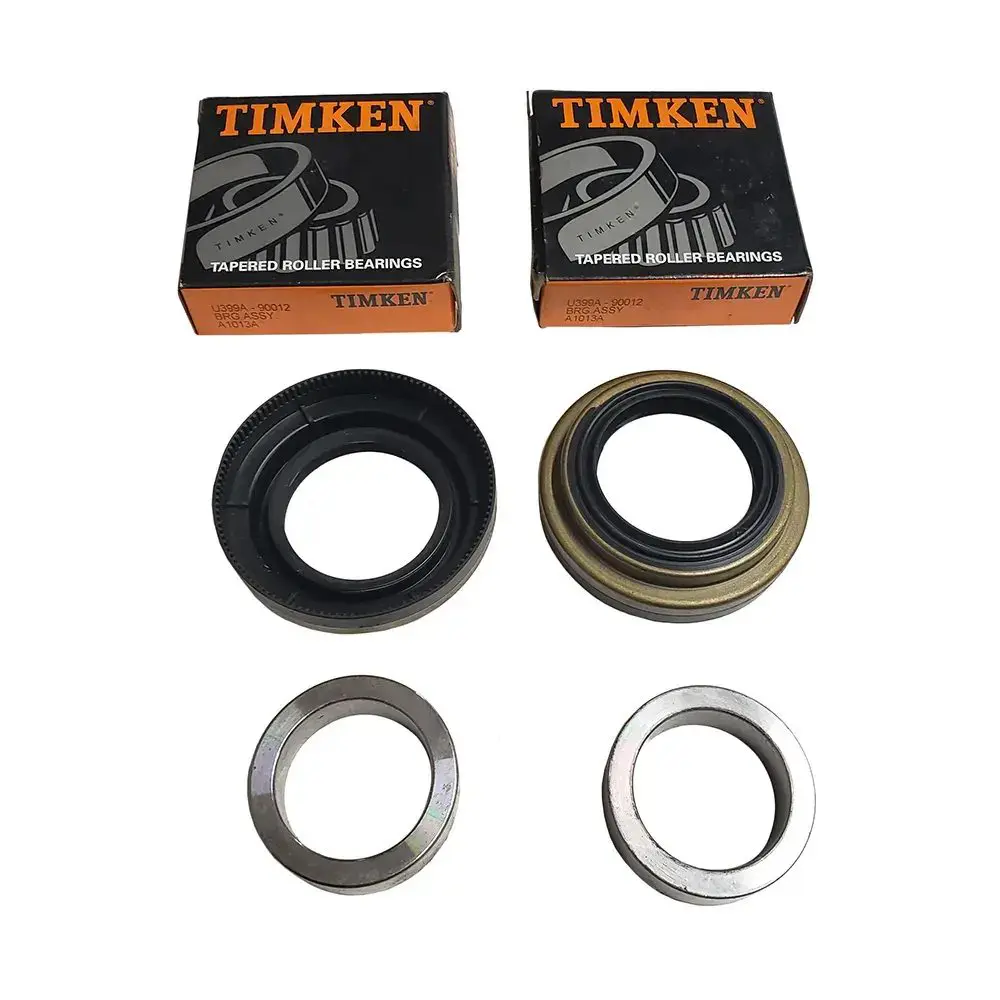

  • wheel bearings included.
  • Shipped bare steel.
  • We can narrow for free (see options).

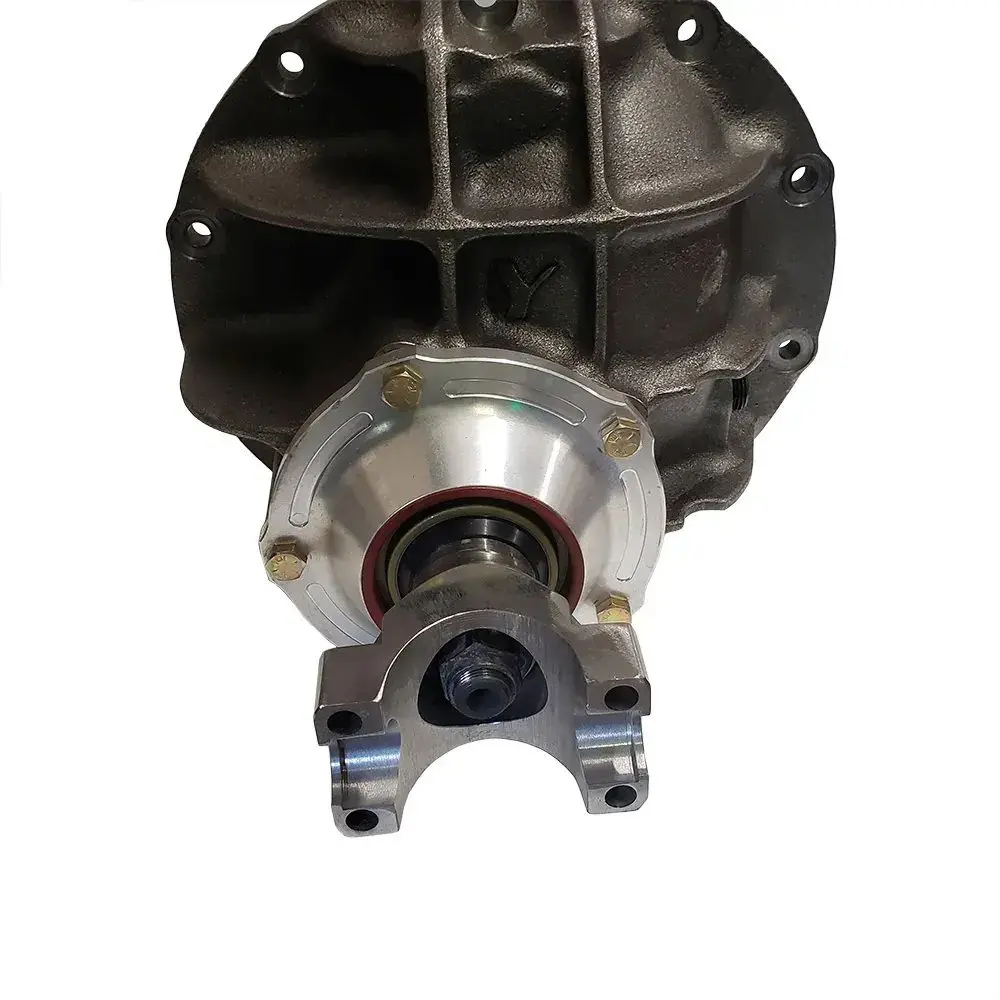

  • Complete assembled center section, spool, your choice of gear.

Options for additional charge:

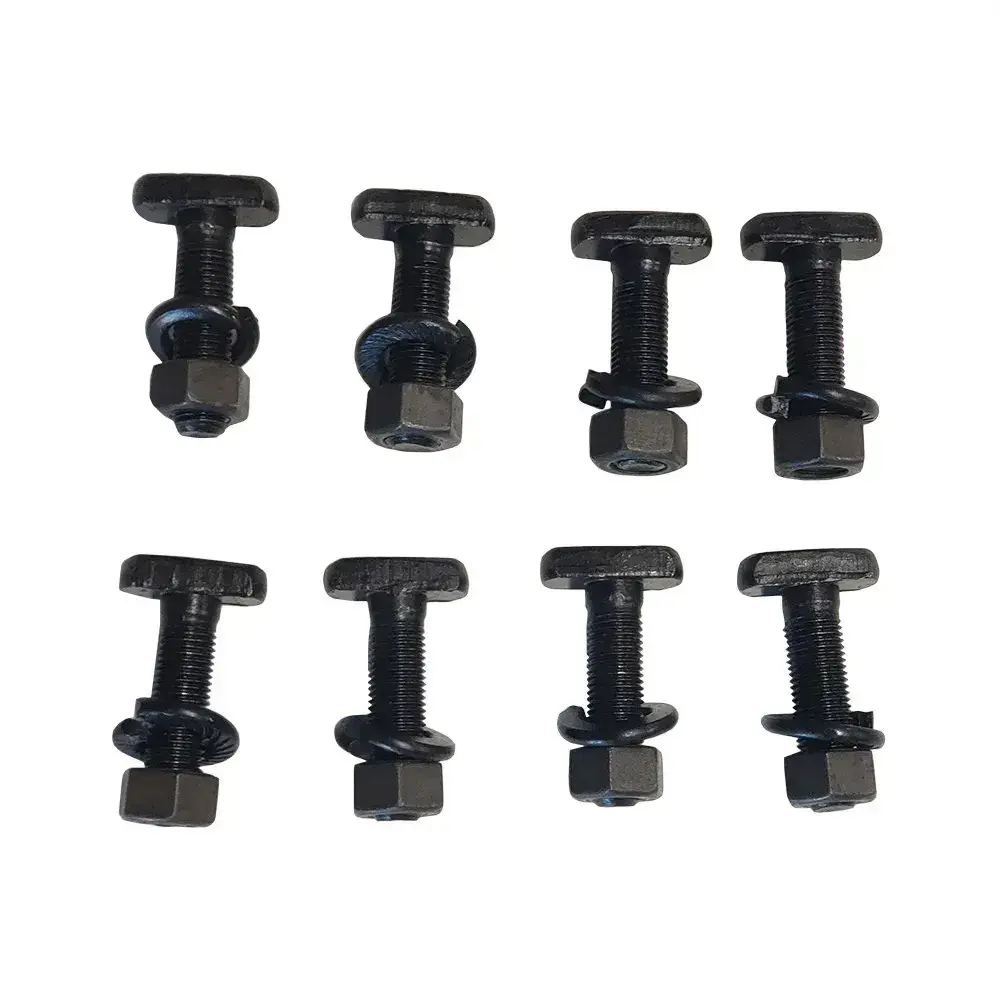

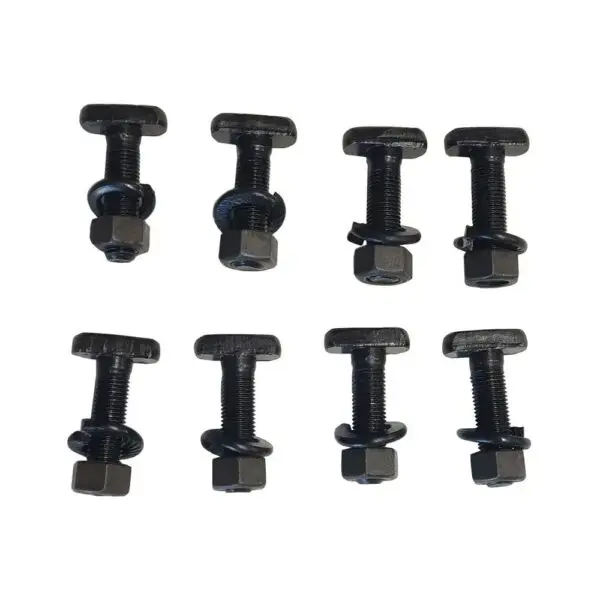

  • T bolt brake hardware kit (easy install of your stock F body backing plates).
  • 40 spline upgraded axles (gun drilled).
  • 5/8 wheel studs.

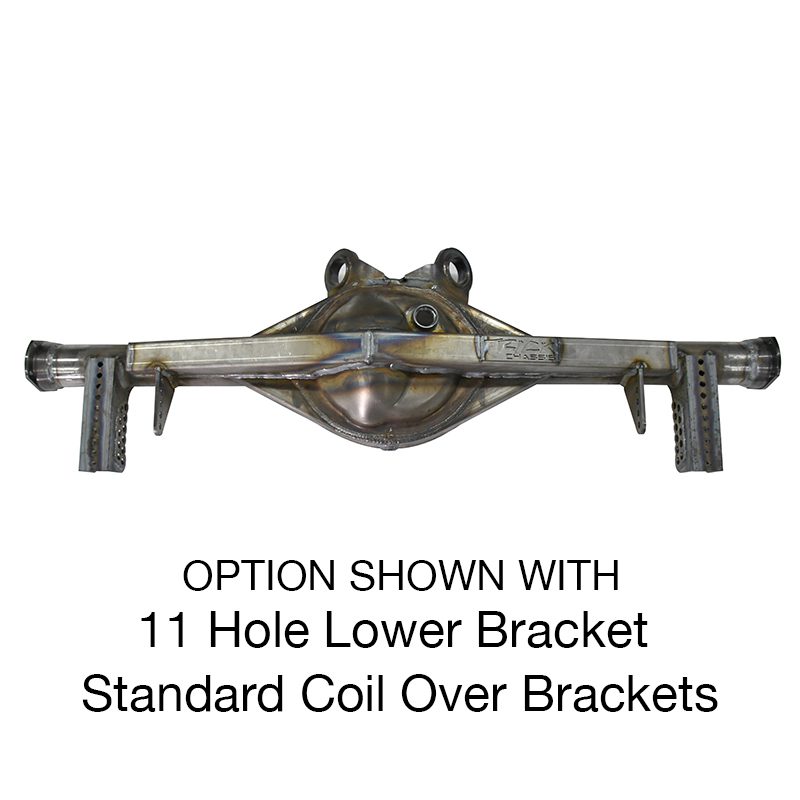

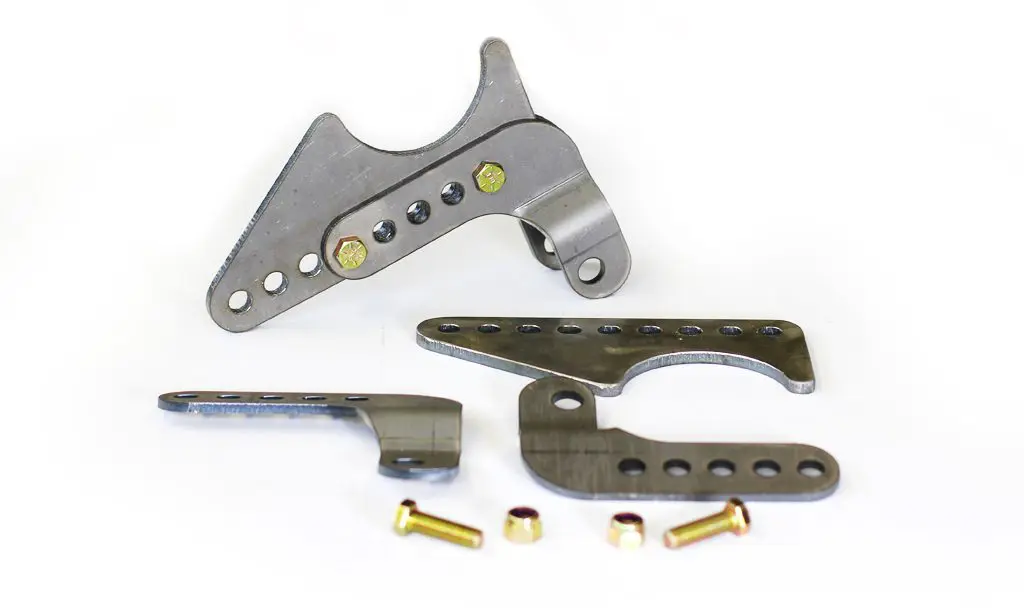

  • 11 Hole narrowed lower brackets.
  • Powder coat.
  • Tow Loops.
  • Fill and drain caps.

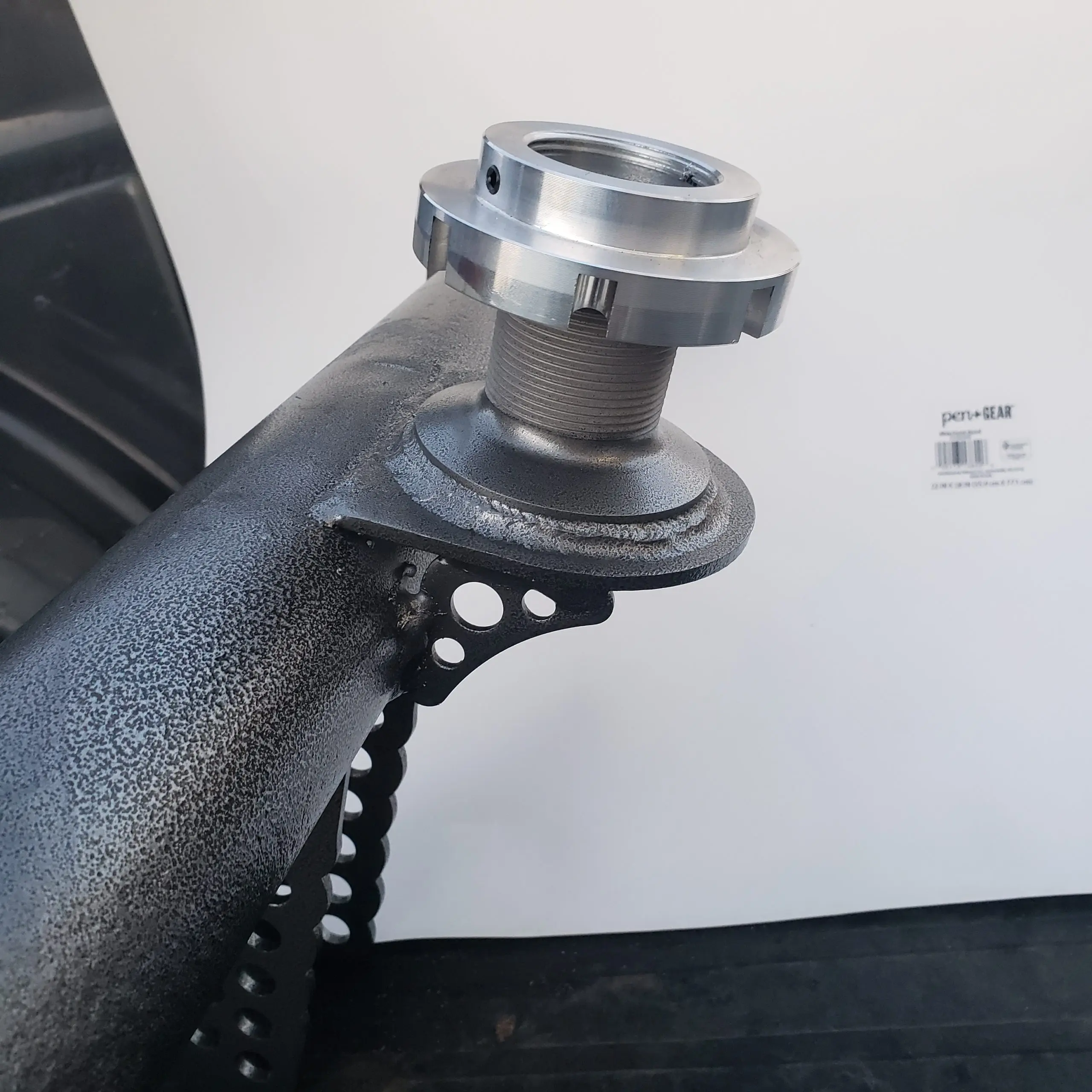

  • Coil over brackets.
  • Coil over brackets with no spring perches added.
  • Differential upgrade.

Please call or email us for pricing and estimated time:

  • We offer full bolt in assemblies.
  • Extreme custom applications (we have done many of these).
  • Crate and freight available.
  • International shipping* Our website will not calculate dutys/taxes/shipping/broker setups.

Important information:

Axles are shipped with no bearings on them. Sometimes depending on what brakes you will use, your brake backing plate needs to go on first then the bearings get pressed on behind them.

Axles and center section are dropped shipped and may show up at an earlier or later time than the housing.

BRAKES:

Please see the brakes that we offer. If you have questions please call, email, or chat with us.

https://www.trickchassis.com/product-category/gm-g-body-1978-1987/brake-kits-gm-g-body-1978-1987/

Additional information

Weight 90 lbs
Dimensions 60 × 19 × 14 in
Brand

Powder Coat

Gloss Black, Gloss Red, Semi Gloss Black

Model Year

1993 – 1997, 1998 – 2002

Axle Splines

28 Moser Axles, 28 Strange Engineering Axles, 31 Spline Moser Axles, 31 Strange Engineering Axles, 35 Spline Moser Axles, 35 Spline Strange Engineering Axles, 40 Spline Strange Engineering

ABS

4 channel ABS ring, None

Back Brace

None, Yes

Wheel Studs (Screw In)

1/2" Wide – 2" Long, 1/2" Wide – 3" Long, 12MM (Stock), 5/8" Wide – 3" Long

Fill & Drain Plug

Both Fill & Drain, Drain, Large Billet Fill, None

Housing Ends

Billet Big Bearing New Style, Billet Big Bearing Old Style, Billet Symmetrical Ends, Flush Mount GM (Can Use Stock F-Body Brakes)

Sway Bar Brackets

None, Yes

Rear End Length

1" Shorter (Each Side), 1/2" Shorter (Each Side), 2" Shorter (Each Side), 3" Shorter (Each Side), Stock Width
