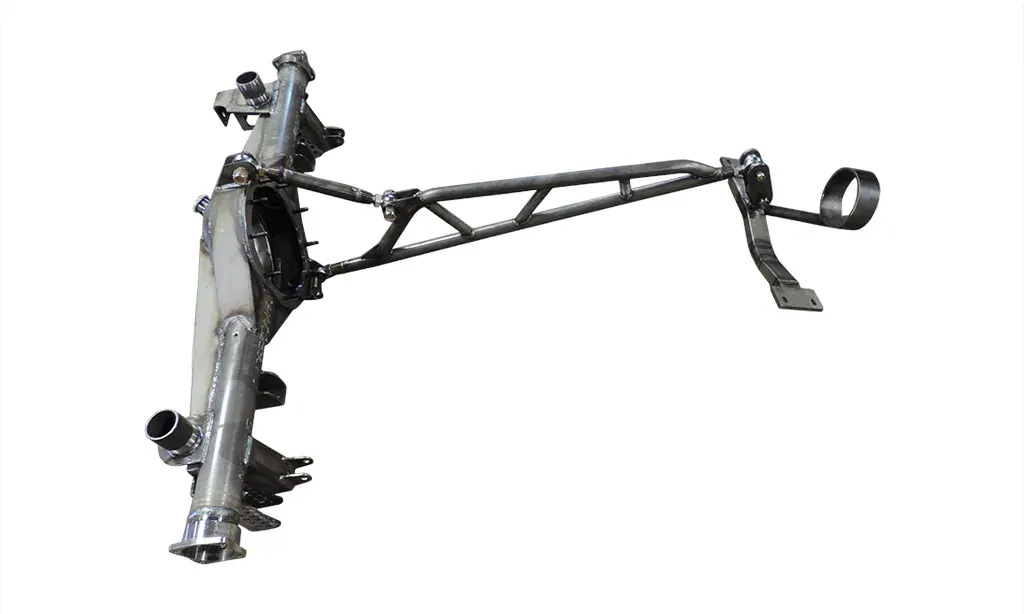

9″ Rear End Housing, Axles & Chromoly Torque Arm

Description

Trick Chassis 9″ Rear axle for 4th gen Camaro and Firebird 1993 to 2002



Below is what comes with it for the base price:

Brand new center fabricated  housing can  (STANDARD) Others charge $100 more

Internal axle tube gussets (STANDARD) Others charge $75 more

3″ .250 wall DOM axle tubes (STANDARD) Others charge $30 more

11 lower control arm mounting holes (STANDARD)

28, 31, 35 spline axle options (YOUR CHOICE)

Drive studs included 12mm, 1/2-2″,1/2-3″ (YOUR CHOICE)

Housing vent included

wheel bearings included

Shipped bare steel

We can narrow for free (see options)

Options for additional charge:

T bolt brake hardware kit (easy install of your stock F body backing plates)

40 spline upgraded axles (gun drilled)

5/8 wheel studs

Powder coat

Tow Loops

Fill and drain caps

Sway bar brackets

Coil over brackets

Coil over brackets with no spring perches added

Please call or email us for pricing and estimated time:

We offer full bolt in assemblies

Wishbone application

Only torque arm and no other bracket setups

Extreme custom applications (we have done many of these)

Crate and freight available

International shipping* Our website will not calculate dutys/taxes/shipping/broker setups.

Important information:

When selection “differential options”  This is telling us what center section that you already have, or are planning on using. The axle lengths will be cut accordingly. If you purchase this for a spool then later down the road want a clutch lock or S-trac or True Track ect ect. One axle may not fit and will need to be trimmed down. Or if you bought this for anything but a spool, and then use a spool center section, the axle could end up being too short on one side. You will not have enough spline engagement.

Axles are shipped with no bearings on them. Your stock backing plate needs to go on first then the bearings get pressed on behind them.

Axles are dropped shipped and may show up at an earlier or later time than the housing.

With the 11 hole lower brackets they are narrower to allow more tire clearance for guys running a wider tire. You will need

to purchase a double rod end lower. Or have us supply you with a set for $149.99



Proper Bearing & Backing Plate Assembly for Trick Chassis 98-02 F-Body 9″ Rear with LS1 Backing Plates

This is a common question, so here’s a step-by-step guide to get it right the first time.

Critical Bearing Installation Steps:

1. Install Wheel Studs First – Use Loctite and torque them properly before moving on.
2. Position the Backing Plates – Slide them onto the correct axle:
   • Long axle = Passenger side
   • Short axle = Driver side

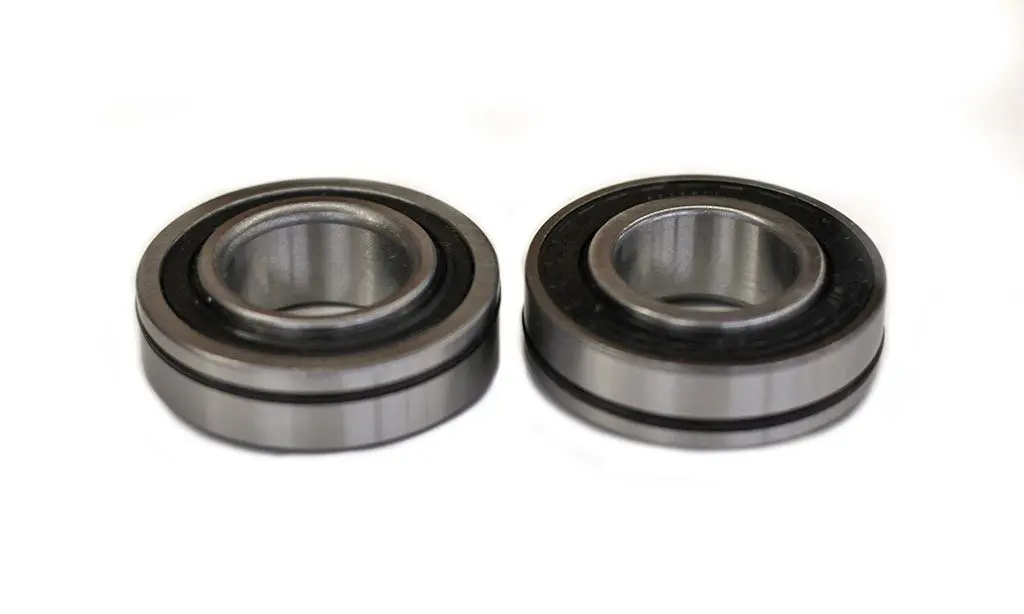

3. Press the Bearings On – Make sure the O-ring is closest to the axle flange (see pic 1).
4. Press on the Lock Rings – Do this only after the bearings are fully seated against the bearing spacer.
5. Install the Seals – Use a seal installer to press them into the housing ends (see pic 2).

Getting these steps right ensures a proper fit and long-lasting performance. 🔧
