Housing, Axles, and Center Section

$2,250.00

-

SKU: TC282 Category:

Description

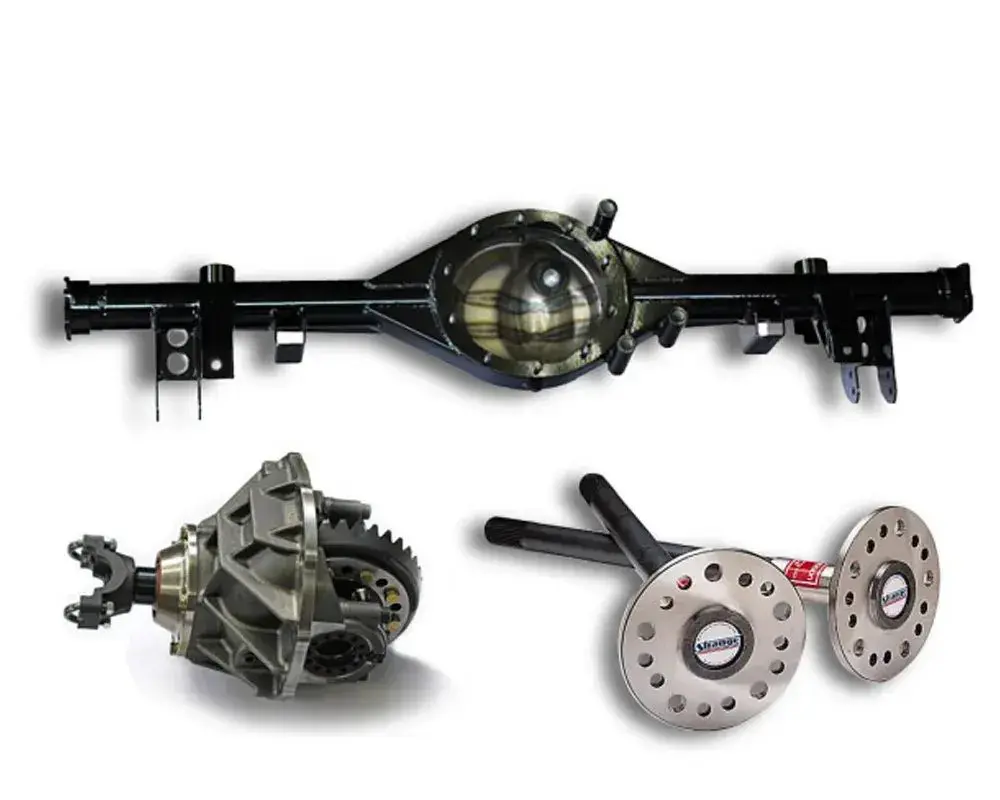

Trick Chassis 9″ Rear axle for 4th gen Camaro and Firebird 1993 to 2002



Below is what comes with it for the base price:

Brand new center fabricated  housing can  (STANDARD) Others charge $100 more

Internal axle tube gussets (STANDARD) Others charge $75 more

3″ .250 wall DOM axle tubes (STANDARD)

4 lower control arm mounting holes (STANDARD)

28, 31, 35 spline axle options (YOUR CHOICE)

Drive studs included 12mm, 1/2-2″,1/2-3″ (YOUR CHOICE)

Torque arm bracket is included

Housing vent included

wheel bearings included

10 nuts to bolt the center section in

Yukon center section with a spool in it (your choice of gear)

Shipped bare steel

We can narrow for free (see options)

Options for additional charge:

T bolt brake hardware kit (easy install of your stock F body backing plates)

Lube Locker Gasket (Super nice aluminum core gasket with orange elastomer beading)

40 spline upgraded axles (gun drilled)

5/8 wheel studs

11 Hole narrowed lower brackets

Powder coat

Fill and drain caps

Sway bar brackets (these also allow you to bolt the under axle ARB on that i sell)

Coil over brackets

Coil over brackets with no spring perches added

Differential being used ( instead of spool)

Please call or email us for pricing and estimated time:

We offer full bolt in assemblies

Wishbone application

Only torque arm and no other bracket setups

Extreme custom applications (we have done many of these)

Crate and freight available

International shipping* Our website will not calculate dutys/taxes/shipping/broker setups.

Important Information:

Axles are shipped with no bearings on them. Your stock backing plate needs to go on first then the bearings get pressed on behind them.

Axles and center section are dropped shipped and may show up at an earlier or later time than the housing.

When putting on the backing plates,  the longer axle goes in the passenger side (right)   The short axle goes in the driver side (Left)

non adjustable aftermarket torque arms do not fit without modification.

We recommend adjustable torque arms only





Additional information

Weight 130 lbs
Dimensions 60 × 19 × 16 in
Brand

Powder Coat

Gloss Black, Gloss Red, Semi Gloss Black

Model Year

1993 – 1997, 1998 – 2002

Axle Splines

28 Moser Axles, 28 Strange Engineering Axles, 31 Spline Moser Axles, 31 Strange Engineering Axles, 35 Spline Moser Axles, 35 Spline Strange Engineering Axles, 40 Spline Strange Engineering

ABS

4 channel ABS ring, None

Back Brace

None, Yes

Wheel Studs (Screw In)

1/2" Wide – 2" Long, 1/2" Wide – 3" Long, 12MM (Stock), 5/8" Wide – 3" Long

Fill & Drain Plug

Both Fill & Drain, Drain, Large Billet Fill, None

Housing Ends

Billet Big Bearing New Style, Billet Big Bearing Old Style, Billet Symmetrical Ends, Flush Mount GM (Can Use Stock F-Body Brakes)

Sway Bar Brackets

None, Yes

Rear End Length

1" Shorter (Each Side), 1/2" Shorter (Each Side), 2" Shorter (Each Side), 3" Shorter (Each Side), Stock Width
