Strange Pro Series Spindle Mount Brake Kit For Strange Ultra Struts & Penske Struts 1 Pc Rotors, Single Piston Calipers & Semi Metallic Pads

Designed Specifically For Drag Racing

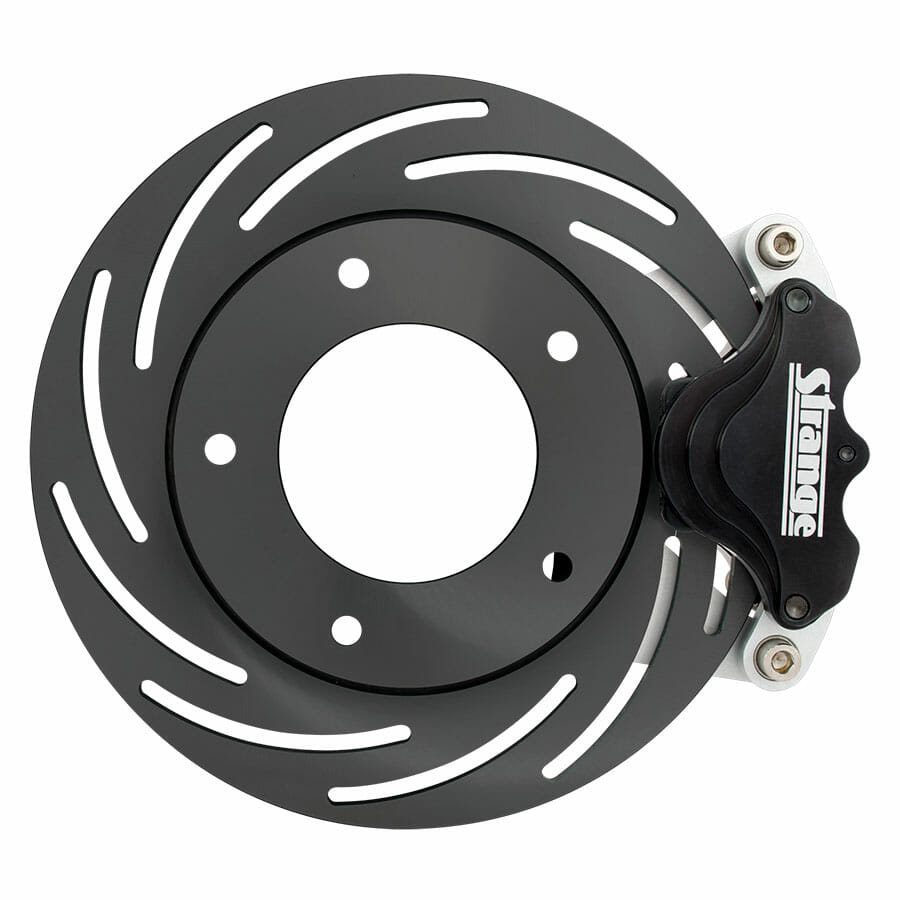

Pro Series Spindle Mount Front Brake Kit
Strange Ultra Struts & Penske Struts
Using 1 piece forged or billet Spindle Mount wheels

One Piece Forged Steel Rotors – B2782 / B2783
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• .375″ holes drilled on 4 3/4″ BC

Single Piston Aluminum Calipers – B1260
• Billet construction resist deflection
• 1 3/4″ stainless steel piston ensures proper clamping force

Slider Assemblies
• Garlock bearings provide smooth operation
• Polished & plated slide pins resist corrosion

Semi Metallic Brake Pads – B2510
• Best compound suited for front application
• Excellent cold holding capabilities

Billet Aluminum Caliper Mounts
• Preassembled with calipers and slider assemblies

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs
