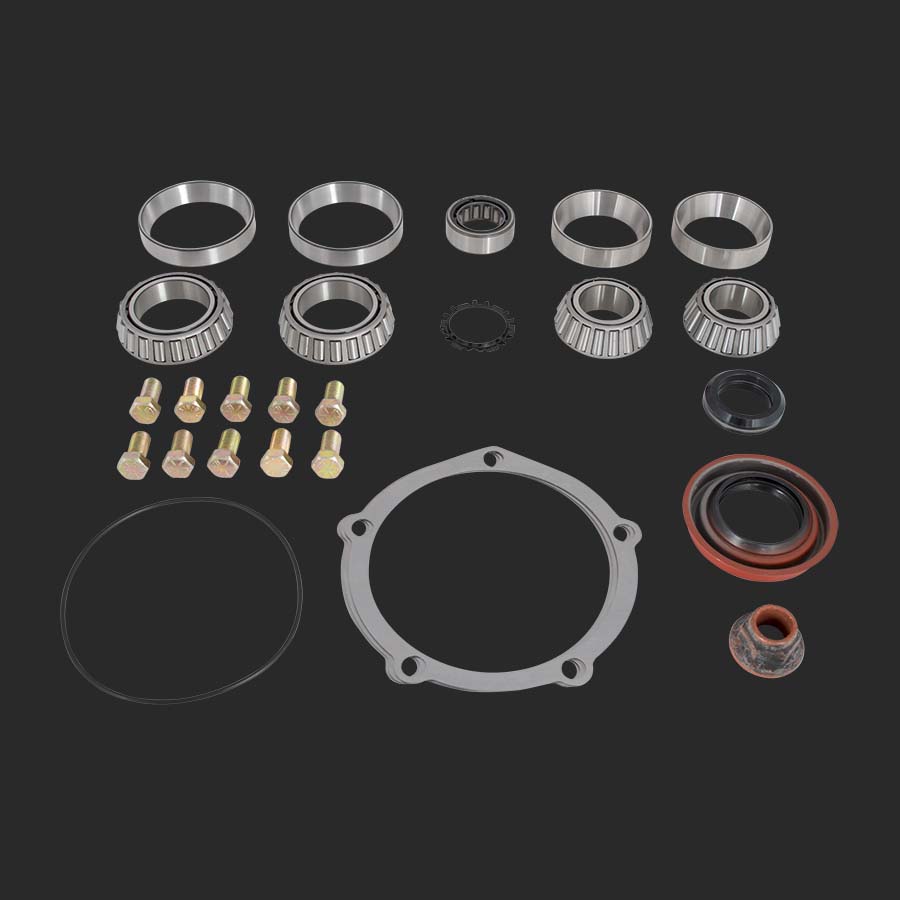

Ford 9″ Install Kit



SKU: TC909 Category:


Strange Engineering install kit

For Daytona Style Supports – N1914 / N1917
All use a larger pinion bearing in the rear than the front

Features Timken® Bearings & Races

Front and rear pinion bearings and races
Side bearings and races- D1586D1588, or D1590
Tail bearing and retainer – N1940 / N1941
Pinion seal – N1960
Pinion support o-ring – N1958A
Flanged locking pinion nut – N1922A
Adjustable pinion preload spacer – N1925
Pinion depth shim kit – N1962
7/16″-20 ring gear bolts – N1965N1967N1968, or D1565RK

Information Required

Case Bore Size
2.891″ / 3.062″ / 3.250″

Spool or Differential

For Differential
Clutch Type or All Others

For Strange Spool
Steel or Aluminum

For Other Spools
Choose part number of ring gear bolts

Related Components
Kit without pinion races…… R5236
Fel Pro gasket………………….. H1112G
Fel Pro Teflon® gasket…….. H1111
Lube Locker gasket………….. H1111S

For stock Ford pinion supports – See R5235WR

Additional information

Weight 5 lbs
Dimensions 9 × 9 × 9 in
