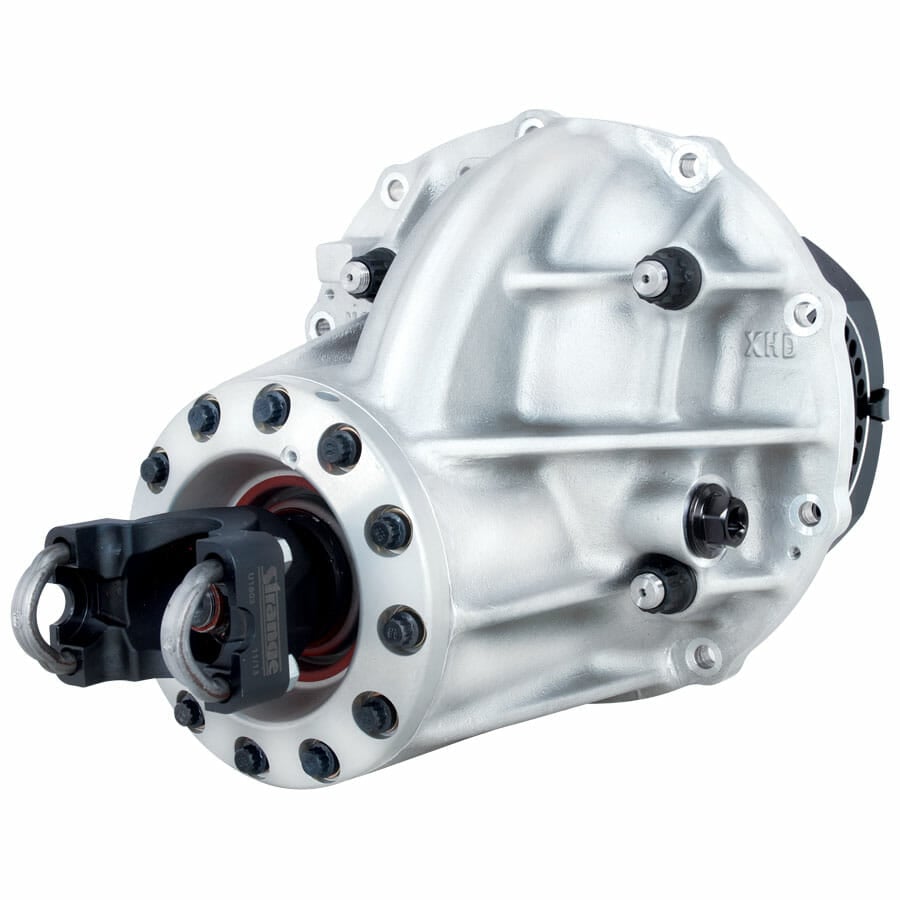

This Center Section May Not Fit Your Housing
Please refer to housing clearance diagram



Includes:

N1912
Strange 3.812″ Bore Ultra Case
206-T4 heat treated aluminum case
Billet aluminum main caps
Solid steel adjuster nuts

N1950A
Billet Aluminum Tapered Bearing Pinion Support
Drilled & tapped for computer pick-up sensors: (2) 5/16″-24 and (2) 3/8″-24*

* 3/8″ holes were added to supports manufactured 2021 and later

D2002
Heavy Duty 40 Spline or 35 Lightweight Steel Spool
Bearing journal increased to 2.250″ for additional load capacity

Choice of 9″ 3.40-4.86 35 Spline Pro gear
9 1/2″ gears are available as an option

For 10″ Pro Gear – See PRF225-10

U1604 & U1610
Chrome Moly 1350 Series Yoke with U-bolts

Professionally Assembled
Timken® Bearings & Races
ARP Ring Gear Bolts

Options
