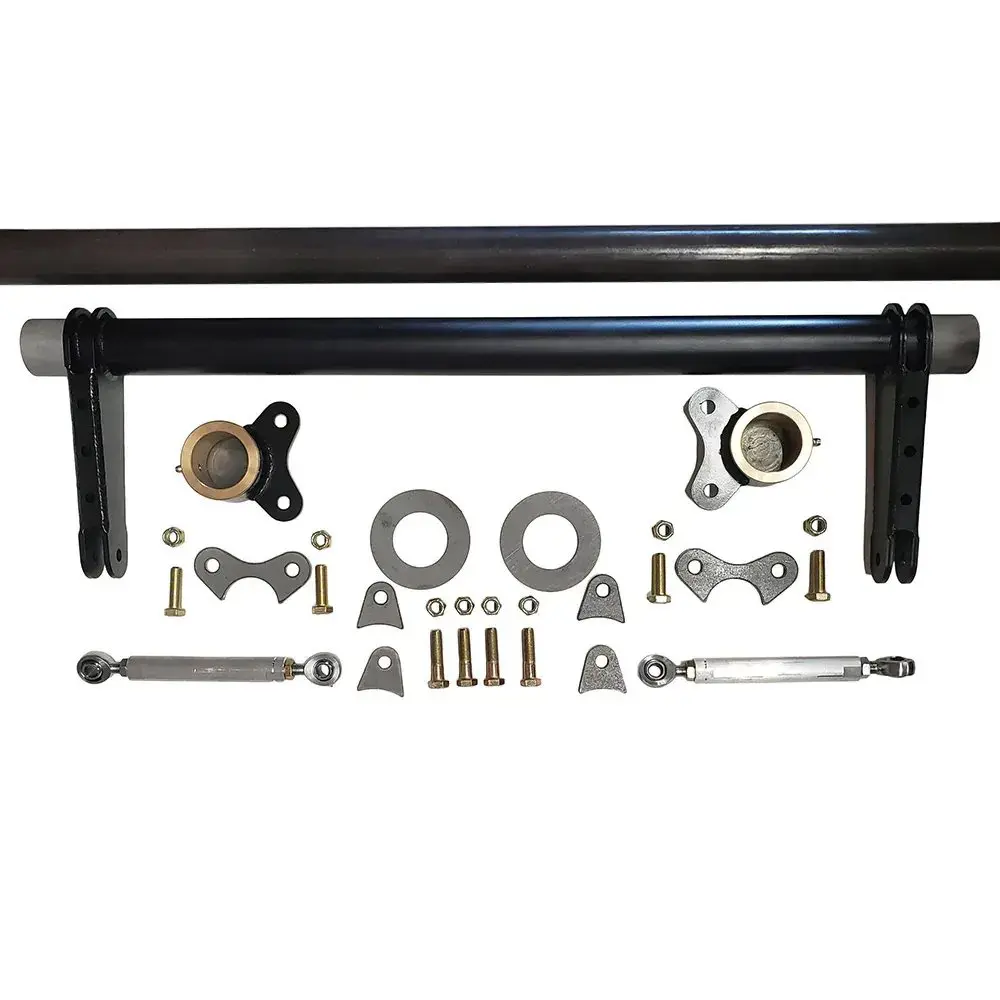

1-5/8″ Anti Roll Bar

 We only use premium CHROMOLY rod ends in this and all our other products.

• Can make custom widths for your application!!! PLEASE CALL
• Eliminates the lean on the launch.
• Straighter and more consistent launches.
• No need for airbags.
• Welds in between the frame.
• Greasable ends.
• Replaceable oil impregnated bronze bushing assembly.
• Chromoly construction.
• Laser cut brackets.
• ALL tig welded.

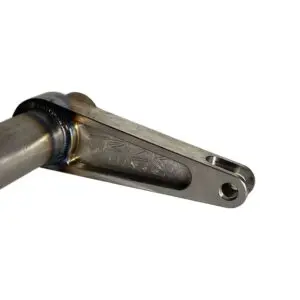

• CNC aluminum arms.
• Torsion bar is 1-5/8″ .083 chromoly.
• Frame bar is 1-5/8 .083 chromoly.
• Arms are 6″ on center and 3/16 thick.
• Arms have a plate tig welded on top and bottom for max strength.
• Grade 8 hardware included!

Pre-load adjustments

Lengthening the Passenger downlink will turn the car Left.
Shortening the Passenger downlink will turn the car Right.

You can also achieve the same results by adjusting the Driver side downlink:

Lengthening the Driver side downlink adds preload and will steer the car right.
Shortening the Driver side downlink will turn the car Left.
