rear end housing with axles
Strange Axle tubes
Axle Seals
Axle bearings
8 T-Bolts
10 12mm drive studs
P65 Warning Label

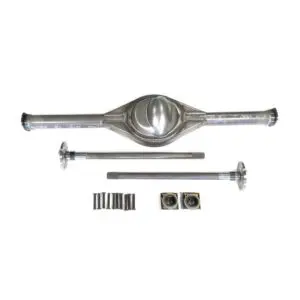

9″ Rear End Housing With Axles 82 to 92 3rd gen

$1,250.00

-

SKU: TC102-1 Category:

Description

Trick Chassis 9″ Rear axle for 3th gen Camaro and Firebird 1982 to 1992

Below is what comes with it for the base price:

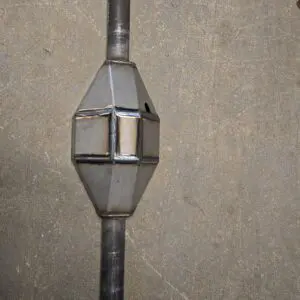

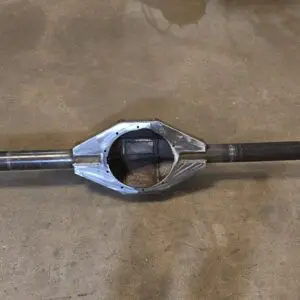

  • Brand new center fabricated housing can (STANDARD) Others charge $100 more
  • Internal axle tube gussets (STANDARD) Others charge $75 more
  • 3″ .250 wall DOM axle tubes (STANDARD) Others charge $30 more
  • 4 lower control arm mounting holes (STANDARD)
  • 28, 31, 35 spline axle options (YOUR CHOICE)
  • Drive studs included 12mm, 1/2-2″,1/2-3″ (YOUR CHOICE)
  • Torque arm bracket is included
  • Housing vent included
  • wheel bearings included
  • Shipped bare steel
  • We can narrow for free (see options)

Options for additional charge:

  • T bolt brake hardware kit (easy install of your stock F body backing plates)
  • 40 spline upgraded axles (gun drilled)
  • 5/8 wheel studs
  • 11 Hole narrowed lower brackets
  • Powder coat
  • Tow Loops
  • Fill and drain caps
  • Stock sway bar brackets
  • Coil over brackets
  • Coil over brackets with no spring perches added

Please call or email us for pricing and estimated time:

  • We offer full bolt in assemblies
  • Wishbone application
  • Only torque arm and no other bracket setups
  • Extreme custom applications (we have done many of these)
  • Crate and freight available
  • International shipping* Our website will not calculate dutys/taxes/shipping/broker setups.

Important information:

When selection “differential options”  This is telling us what center section that you already have, or are planning on using. The axle lengths will be cut accordingly. If you purchase this for a spool then later down the road want a clutch lock or S-trac or True Track ect ect. One axle may not fit and will need to be trimmed down. Or if you bought this for anything but a spool, and then use a spool center section, the axle could end up being too short on one side. You will not have enough spline engagement.

Axles are shipped with no bearings on them. Your stock backing plate needs to go on first then the bearings get pressed on behind them.

Axles are dropped shipped and may show up at an earlier or later time than the housing.



IMPORTANT INFO ON THE BRAKES

The Billet gm 10/12 (can use stock GM car brakes)  these only fit 3rd gen drums if you have a 4 hole backing plate. Otherwise this fits 2nd gen drum brake kits

Additional information

Weight 100 lbs
Dimensions 60 × 19 × 14 in
Brand

Powder Coat

Gloss Black, Gloss Red, Semi Gloss Black
Model Year

1993 – 1997, 1998 – 2002
Axle Splines

28 Moser Axles, 28 Strange Engineering Axles, 31 Spline Moser Axles, 31 Strange Engineering Axles, 35 Spline Moser Axles, 35 Spline Strange Engineering Axles, 40 Spline Strange Engineering
ABS

4 channel ABS ring, None
Back Brace

None, Yes
Wheel Studs (Screw In)

1/2" Wide – 2" Long, 1/2" Wide – 3" Long, 12MM (Stock), 5/8" Wide – 3" Long
Fill & Drain Plug

Both Fill & Drain, Drain, Large Billet Fill, None
Housing Ends

Billet Big Bearing New Style, Billet Big Bearing Old Style, Billet Symmetrical Ends, Flush Mount GM (Can Use Stock F-Body Brakes)
Sway Bar Brackets

None, Yes
Rear End Length

1" Shorter (Each Side), 1/2" Shorter (Each Side), 2" Shorter (Each Side), 3" Shorter (Each Side), Stock Width
